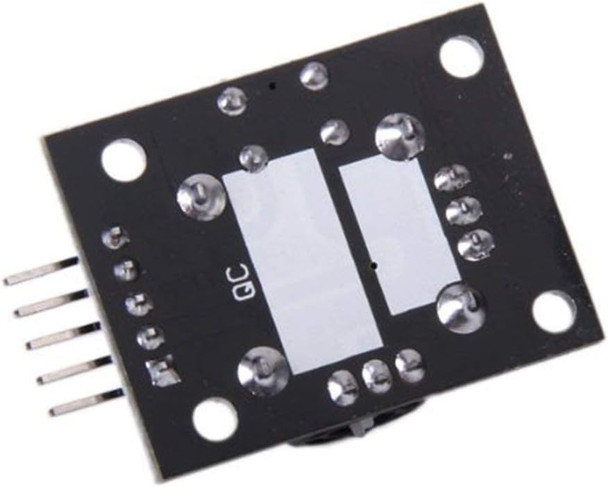

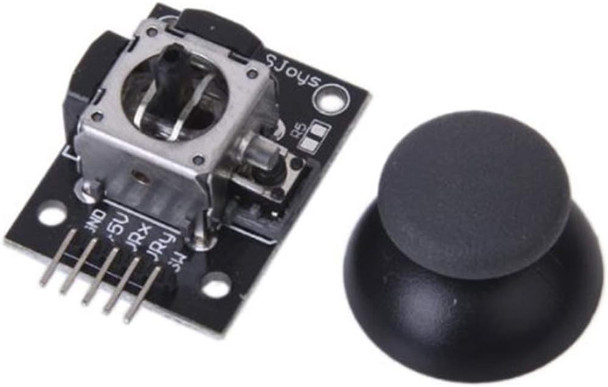

Description
: Twoaxis pushbutton rocker sensor module by joystick potentiometer with X, Y 2 axis analog output, Z 1 button digital output. With the sensor expansion board can be produced such as remote control interactive works. In addition, this product in order to allow customers to more easily with expansion board and other standard interface, the design of the X, Y, Z axis of the circuit leads alone, the user can use 3pin special line really plugged into the expansion board for Use. Product performance: 1. Input voltage range: DC 3.3V to 5V 2. Output signal: module ad hoc twoway analog output and one digital output interface, the output value corresponding to X, Y biaxial offset, the type is analog the button indicates whether the user presses the Z axis, Its type is digital switch. 3. Through the controller programming, plug the sensor expansion board to complete the creative remote interactive works. 4. Cross rocker is a bidirectional 10K resistor, with the rocker in different directions, the tap resistance changes. The module uses 5V power supply, the original state of X, Y readout voltage of 2.5V or so, with the direction of the arrow down, read the voltage value increases with up to 5V the arrow is pressed in the opposite direction, read the voltage value decreases , The minimum is 0V. Product parameters: Product Name: Rocker module twoaxis button rocker Product Size: 34.0mm 26.0mm 32.0mm LxWxH Colour: Black Package Included： 1 Game Controller JoyStick Breakout Module
Key Features :
• Two analog outputs, all the way to digital output.
• X, Yaxis output for the two potentiometers, you can read through the AD conversion twist angle.
• Like the next press the joystick, you can move all the way to touch the authority for the digital output, has been pulled.
Country of Origin: USA
Manufacturer/Importer/Packed By : Hiletgo
Availability: Estimated time of delivery is 15 - 17 days
Delivery Region : All over India
