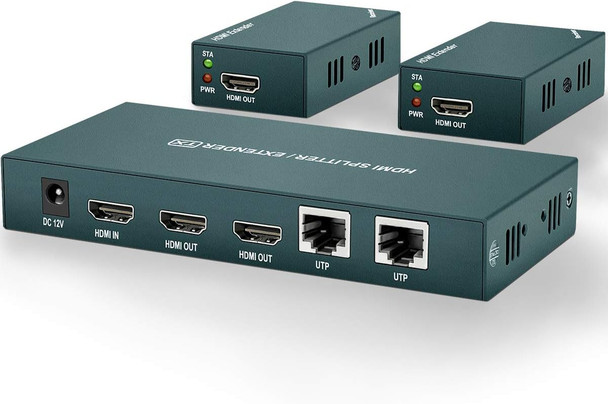

HDMI Extender Splitter 1x2, HD1080P@60Hz & 3D Visual, Extending 165ft (50m) Length Transmission Over CAT5e/CAT6/CAT7 Cable, 2 Channel Transmission with 2 HDMI Loop Out1

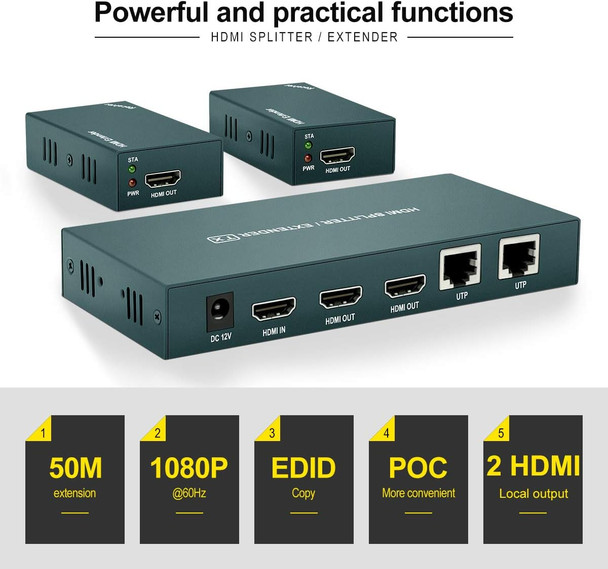

Description: More simple,more easy, more professionalAAO 1.Introduction The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, transform one channel input to 4 channel output, it supports high resolution up to 1080p. It can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. 2.Features （1） Transform one channel HDMI input to 2 channel Cat5eCat6Cat7 signal output, and with 2 HDMI loop output （2） Support video resolution up to 1920108060Hz, 3D signal （3） Transmits 2 HDMI video and audio signals up to 50M over a single Cat6 cable Cat5e45m （4） Support EDID copy function （5） Support POC function, only one power adapter be used can support the whole kit operation （6） Compliance with HDMI 1.3 standard （7） Builtin automatic adjustment system, make the image smooth, clear and stable （8） Builtin ESD protection system （9） Simple to install, plug and play 3.Specifications 1 Maximum pixel clock: 165MHz. 2 Maximum data rate: 6.75Gbps. 3 Interface: RJ45. 4 Resolution: Max 1920X108060Hz 5 Connector: HDMIA. 6 Impedance: 100Ω. 7 Transmission distance: CAT650M 4.Other 1 Power supply : DC 12V 2 Power dissipation: MAX 6W 3 Temperature Operating: 5℃ +70℃ 4 Humidity Operating: 5 90 5 Dimension TX:1507123mmRX:814523 6 The : 1 year free 5.Packing List 1 1x Transmitter 2 2x Receivers 3 1x Power Supply 4 1x User Manualnb. Key Features: • 【POC Function】Support POC function, means power over cables, only one power adapter be used can support the whole kit operation, reducing mass complicated operations, more simple and convenient. • 【LOSSLESS TRANSMISSION】 Supports video resolution up to 1080P60Hz and supports 3D visual enjoyment. High quality audio and video synchronous transmission, stable, clear and smooth. Give a feast to your eyes. • 【EDID COPY FUNCTION】 This product has a very powerful EDID copy function, which makes it be able to identify the display device parameters and match it, enhance compatibility with the device, and adapt to various complex application environments.

Country of Origin: USA
Manufacturer/Importer/Packed By : Steetek

Availability: Estimated time of delivery is 15-17 days
Delivery Region : All over India
